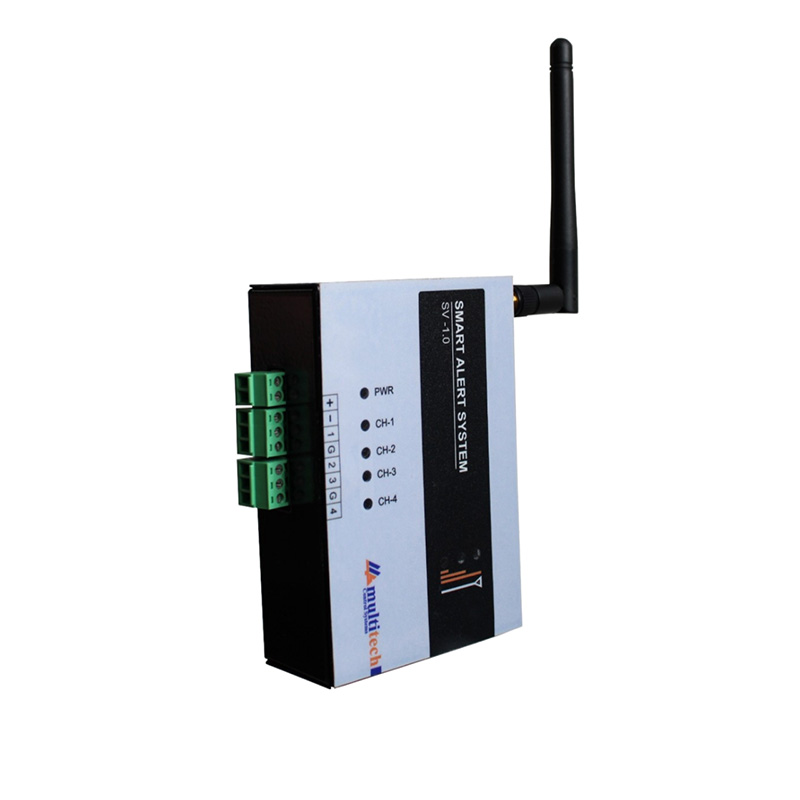

The SMART SMS Alert System, equipped with multiple analog and digital inputs, along with digital outputs, provides swift SMS notifications to key decision-makers for system failures, process condition changes, and security breaches, leveraging 2G/4G embedded technology.
| Parameters | Description |
| Make | Multitech |
| Digital Input | 4 Nos. Potential free input /24 V DC |
| Analog Input | 2 Nos., 4-20mA |
| Digital Output | 6 Nos., Potential free |
| Power Supply | +24V DC.1A , Range 18V DC – 36 V DC |
| LED Indication | 6 LEDs for each Input, 3 LEDs for network strength |
| Configuration | Though SMS |
| SMS Alert | 160 Characters 10 Modbus parameters |
| SIM & Holder | Push Type |
| Enclosure | Metallic Enclosure with DIN rail mounting |
| Operating Temperature | -35° to 80°C |
| Relative Humidity | 90 % Rh non condensing Mechanical |
| Terminal | Screw type connector |
| Warranty | 12 Months Manufacturer Warranty |
